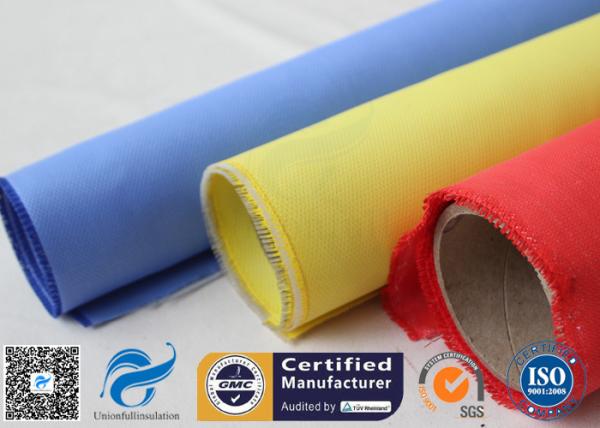

Red Silicone Rubber Coated Fiberglass Engineer Acoustic Insulation Fabric Material
The products are made of fine fiberglass with excellent capacity of high temperature and corrosion resistance, coated with silicone rubber, which is a brand new product with good performance and multiple applications.
| Item No | Thickness | Breaking strength (n/50mm) | Bursting strength Mpa | Weight | Standard width |
| UPSE-8025 | 0.25mm | 1800/1500 | 2.1mpa | 440 g/sqm | 1250mm |
| UPSE-8035 | 0.35mm | 2000/1600 | 2.2 mpa | 520 g/sqm | 1500mm |
| UPSE-8040 | 0.40mm | 2400/2200 | 2.4 mpa | 620 g/sqm | 1500mm |
| UPSE-8060 | 0.60mm | 2600/2400 | 2.5 mpa | 850 g/sqm | 1500mm |
| UPSE-8080 | 0.80mm | 3000/2800 | 2.6 mpa | 1120 g/sqm | 1500mm |
| UPSE-8100 | 1.00mm | 3700/3300 | 2.3 mpa | 1400 g/sqm | 1500mm |
| UPSE-8150 | 1.50mm | 4200/3800 | 2.2 mpa | 2100 g/sqm | 1500mm |
| UPSE-8200 | 2.00mm | 4200/3800 | 2.2 mpa | 2800g/sqm | 1500mm |
Silicone fiberglass fabric Features:
1. Temperature resistance, it can continuously work under -70℃to 230℃
2. Weatherability: resistance to ozone, oxygen, sunlight and aging, long using life up to 10 years.
3. Good electric insulator, dielectric constant 3～3.2, break down voltage between 20～50KV/mm,
Silicone fiberglass fabric applications:
1. Electric insulation: Silicon coated fiberglass fabric features high grade of electric insulation and bear a load of high voltage. It fits for making products like insulation cloth and sleeves etc.
2. Non-metallic silicone fiberglass fabric could be used as compensator: used as pipeline flexible coupling, non-metallic compensator helps to avoid damage caused by heat expansion and cold contraction. This membrane material specially fit for use in industries of petroleum, chemical engineering, cement, iron and steel and energy sources due to its special features of temperature resistance, anti-corrosion, anti-aging, and good elasticity and toughness.
3. Anti-corrosion sector: silicone fiberglass fabric is good to be used as inner and outer anti-corrosion layer featuring excellent corrosion resistance, temperature resistance and high strength. It proves to be an ideal anti-corrosion material.
4. Others: Apart from above application, silicone fiberglass fabric can also be used as sealing material, temperature resistant and anti-corrosion conveyer belt and packaging material.
